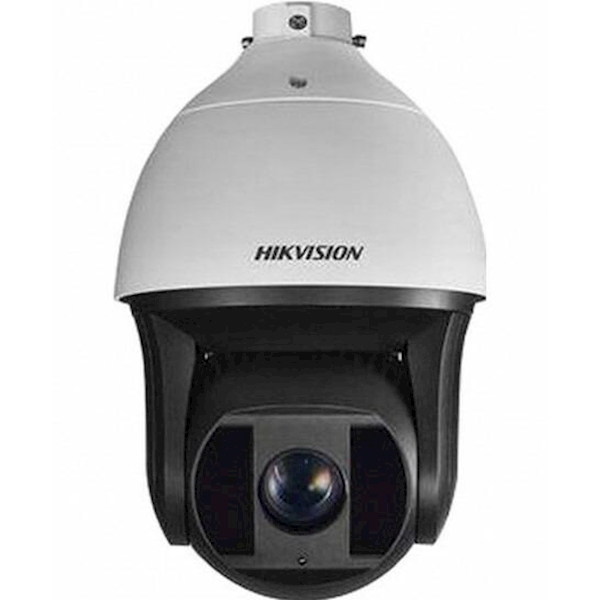

DS-2DF8236IV-AEL, Hikvision PTZ Lightfighter 2MP, 36x, IK10, IP66

DS-2DF8236IV-AEL, Hikvision PTZ Lightfighter 2MP, 36x, IK10, IP66

Prijs per stuk
Inloggen
Opties
Beugels
Opties
Muurbeugel met extra box
Muurbeugel met extra box
Paalmontagebeugel
Paalmontagebeugel
Hoekmontagebeugel
Hoekmontagebeugel
Verlengde muurbeugel
Verlengde muurbeugel
Plafondmontagebeugel
Plafondmontagebeugel
Muurbeugel met extra box en mastklemmen
Muurbeugel met extra box en mastklemmen
SD Kaart
Opties
WD Purple 32GB SD Kaart
WD Purple 32GB SD Kaart
WD Purple 256GB SD Kaart
WD Purple 256GB SD Kaart
WD Purple 64GB SD Kaart
WD Purple 64GB SD Kaart
WD Purple 128GB SD Kaart
WD Purple 128GB SD Kaart
Hi-PoE Adapter
Opties
POE-Injector 60W.
POE-Injector 60W.
SD Kaart
Opties
32GB WD Purple
32GB WD Purple
64GB WD Purple
64GB WD Purple
128GB WD Purple
128GB WD Purple
256GB WD Purple
256GB WD Purple
  • -
    +
    • Belangrijke kenmerken:

    • Toepassing: Lightfighter PTZ 140dB WDR
    • MicroSD kaart voor lokale opslag: max. 128GB.
    • 1/2,8 inch HD CMOS-sensor
    • 2MP (1920x1080) Full HD
    • Hoge framesnelheid, tot 60fps @ 2MP
    • 36x optische zoom
    • 140dB Ultra WDR
    • Slimme tracking
    • Slimme detectie
    • Defog
    • 200m IR afstand
    • Optionele wisser (-W)
    • Hi-PoE / 24VAC-voeding
    Lightfighter PTZ 36x optische zoom
    Camera
    Image Sensor:   1/2.8" Progressive Scan CMOS
    Effective Pixels:   1920(H)x1080(V)
    Signal System:   PAL/NTSC
    Minimum Illumination:   F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux , 0 lux with IR
    White Balance:   Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
    AGC:   Auto/Manual
    BLC:   ON/OFF
    HLC:   Support
    Smart defog:   Support
    WDR:   140dB
    Shutter Time:   50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
    Day& Night:   ICR
    Digital Zoom:   16X
    Privacy Masking:   24 privacy masks programmable
    Auto Focus:   Auto / Semi-automatic / Manual
    Lens
    Focal Length:   5.7-205mm, 36x
    Zoom Speed:   Approx.3.3s(Optical Wide-Tele)
    Angle of View:   60.6-3.68 degree (Wide-Tele)
    Minimum Working Distance:   10-1500mm(Wide-Tele)
    Aperture Range:   F1.6~F4.4
    Pan & Tilt
    Pan Range:   360°endless
    Pan Speed:   Pan Manual Speed: 0.1°~160°/s,
    Pan Preset Speed: 240°/s
    Tilt Range:   -20°~90°(Auto Flip)
    Tilt Speed:   Tilt Manual Speed: 0.1°~120°/s,
    Tilt Preset Speed: 200°/s
    Proportional Zoom:   Rotation speed can be adjusted automatically according to zoom multiples
    Number of Preset:   300
    Patrol:   8 patrols, up to 32 presets per patrol
    Pattern:   4 patterns, with the recording time not less than 10 minutes per pattern
    Power-off Memory:   Support
    Park Action:   Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
    PTZ Position Display:   ON/OFF
    Smart-tracking:   Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger
    Smart tracking when patrol between multiple scenarios
    Wiper:   Optional
    Infrared
    IR irradiation distance:   200m
    IR irradiation angle:   Adjustable by zoom
    Alarm
    Alarm Input:   7 Inputs
    Alarm Output:   2
    Alarm Actions:   Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client
    Input & Output
    Monitor Output:   1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
    Audio Input:   1 Mic in/Line in interface
    Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
    Audio Output:   1 Audio output interface
    Line level, impedance: 600Ω
    Network
    Ethernet:   10Base -T, /100Base-TX, RJ45 Connector
    Max.Image Resolution:   1920×1080
    Main Stream:   50Hz: 25fps(1920×1080), 25fps (1280×960) / 50fps(1920×1080), 50fps(1280×960), 50fps(1280×720)
    60Hz: 30fps(1920×1080), 30fps (1280×960) / 60fps(1920×1080), 60fps(1280×960), 60fps(1280×720)
    Sub Stream:   50Hz: 25fps(704×576, 352×288, 176×144)
    60Hz: 30fps(704×480, 352×240, 176×120)
    Third Stream:   50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 352×288, 176×144)
    60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×480, 352×240, 176×120)
    Video Compression:   H.264 / MJPEG
    ROI encoding:   Support 6 areas with adjustable levels
    Audio Compression:   G.711ulaw/G.711alaw/G.726/MP2L2/G.722
    Protocols:   IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
    No. of Simultaneous Users:   Up to 20 users
    Three-Stream:   Support
    Mini SD Card:   Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
    User/Host Level:   Up to 32 users,3 Levels: Administrator, Operator and User
    Security Measures:   User authentication (ID and PW),
    Host authentication (MAC address)
    IP address filtering
    Client GUI
    Date & Time Display:   Time: Week: Date, 6 formats on the Client
    Client:   Support iVMS-4200
    Web Browser:   IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
    General
    RS-485 Protocols:   HIKVISION, Pelco-P, Pelco-D, self-adaptive
    Menu Language:   English
    Power Supply:   24 VAC & Hi-PoE
    Power Consumption:   Max.60W
    Working Temperature/Humidity:   -40°C ~ 65°C (-40°F ~ 149°F)
    Protection Level:   IP66, IK10, TVS 6,000V lightning protection, surge protection and voltage transient protection
    Mounting:   Various mounting modes optional
    Dimensions:   Φ266.6(mm)×365.2(mm)
    Weight (approx.):   8kg (approx.)
    Mount Option:   Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
