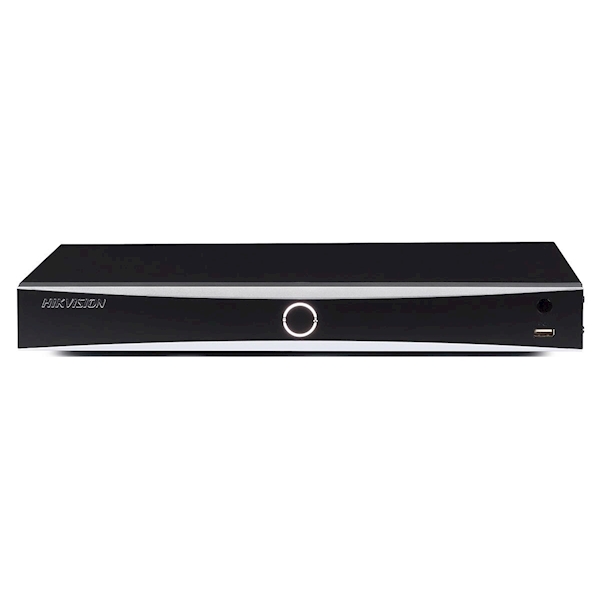

Hikvision, NVR, AcuSense, 8-Ch
Algemene specificaties:
Facial Recognition
Face Picture Library: up to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
Face Picture Comparison: 4-ch face picture comparison alarm
Facial Detection And Analytics: Face picture comparison, human face capture, face picture search
Facial Detection And Analytics Performance: 1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
Perimeter Protection
Human/Vehicle Analysis: Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Video And Audio
IP Video Input: 8
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 256 Mbps
HDMI Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode: HDMI/VGA independent output
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding Format: H.265,H.265+,H.264,H.264+,MPEG4
Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Playback Mode: Normal/Smart, Event, Tag, Eternal File
Live View Window Division: 1/4/6/8/9
Aux Port Window Division: 1/4/6/8/9
Audio Compression: G.711ulaw,G.711alaw,G.722,G.726,MP2L2
Network
Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA: 2 SATA interfaces
Capacity: Up to 8 TB capacity for each disk
Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
Alarm In/Out: 4/1
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply: ≤ 40 W
Consumption: ≤ 15W
Working Temperature: -10?~+55?
Working Humidity: 10%~90%
Chassis: 1U
Dimension (W × D × H): 385 × 315 ×52 mm
Weight: ≤ 1.6 kg
