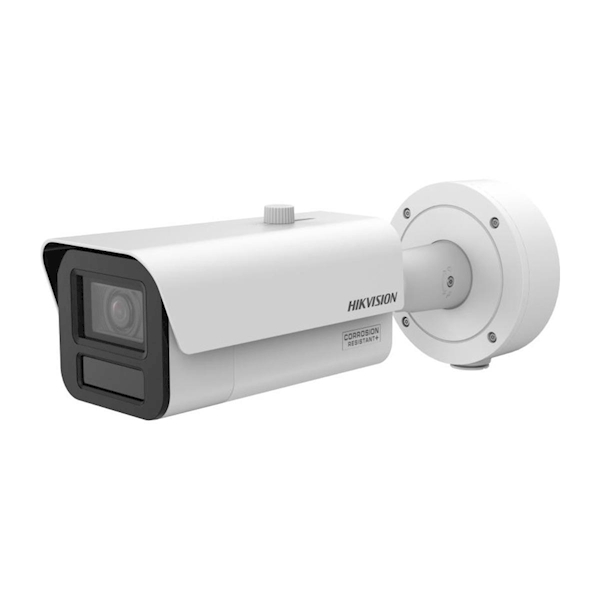

Hikvision, 8MP Deeplearning Bullet, Heater, Nema coating, 2.
Beeldsensor
1/1.8" Progressive Scan CMOS
Resolutie
4K UHD (3840×2160)
Lichtgevoeligheid
Kleur: 0.0005 Lux
Zwart/Wit: 0.0001 Lux (met IR: 0 Lux)
Lensopties:
2.8–12 mm (FOV: tot 126.5°)
8–32 mm (FOV: tot 48.7°)
IR-bereik
tot 100 meter
DORI-afstanden (Detect, Observe, Recognize, Identify)
Tot wel 580 meter detectieafstand (bij 32 mm lens)
AI & Analytics
Gezichtsherkenning (tot 120 tegelijk, 150.000 in database)
Mens/voertuig detectie
People counting (meer-dimensionaal, real-time, rapporten)
Queue management (wachtrij-efficiëntie)
Heat maps & On/Off Duty detectie
Hard hat detection en dynamic mosaic masks
Video & Audio
Streams: 5 gelijktijdige videostreams
Max FPS: 120 fps @ 1080p
Compressie: H.265+/H.264+/MJPEG
Audio: mono, G.711, MP3, AAC-LC, noise filtering
Netwerk & Interface
PoE (IEEE 802.3at) + 12VDC/24VAC
5G ondersteuning (n41/n77/n78/n79)
Protocolondersteuning: ONVIF, HTTPS, SNMP, IPv6, SFTP, QoS
Opslag: microSD tot 1 TB + NAS/ANR ondersteuning
Omgeving & Behuizing
IP67 + IK10 (waterdicht, vandaalbestendig)
NEMA 4X coating (anti-corrosie, bij -Y model)
Temperatuurbereik: -40 °C tot 65 °C
Materiaal: Aluminium legering
Afmetingen: Ø 140 mm × 377.4 mm
Gewicht: ca. 2.17 kg
